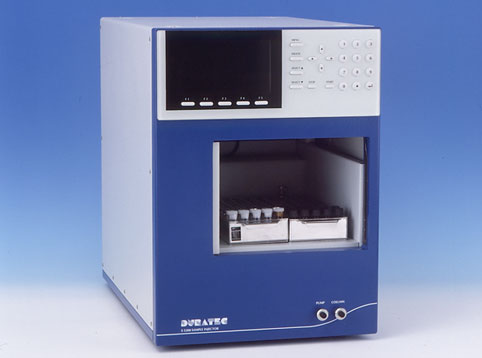

The autosampler DAS-5200 can manage up to 120 samples, also with multiple injections with different sample volume. A freely x-y-z adjustment of the vials allows to vary the sample sequence just as you like. The sample is transported via a syringe drive.

The dialogue for the programming is done in text in clear via a keyboard and a big display. It does not require external compressed air and is perfectly suitable for the routine application for automatic sample sequencies with highest possible precision and reproducability.

For the control there is one start and stop signal each as input available, and as output there are available an inject contact closure, an error status contact closure and 4 freely programmable timed event relays.

As an option, variable volume dosage, temperable sample racks and pre-column-derivation can be integrated.

 Fixed (standard) or variable (option) volume injection

 Sample Dilution and Needle wash

 Multiple injections per vial

 Stainless steel or PEEK needle

Downloads (Autosampler)     Datasheet             Edition 10/2003 (181 kB)
